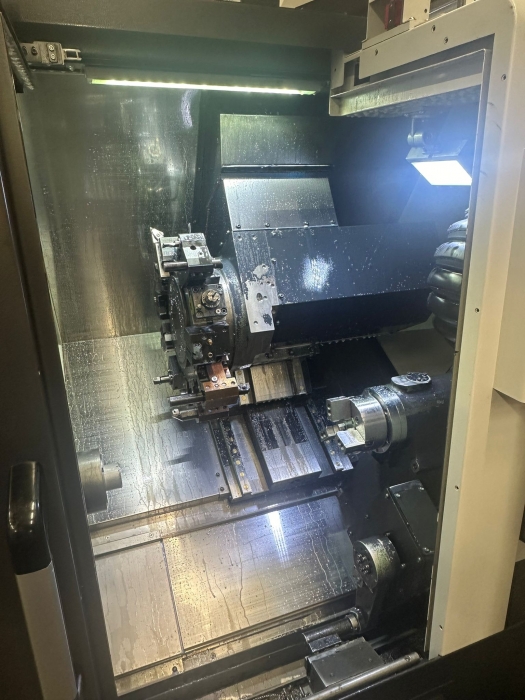

CNC stružnica » DN Solutions LYNX 2100LSYB

Control FANUC 0T PLUS 15inch monitor, Memory 2MB

15" INCH MONITOR - TOUCH PANEL

3 YAW CHUCHK MAIN SPINDLE 210[mm] 8"

Main spindle 4.500[min-1] P=15/15/11[kW]<S3 25%/15min/cont> M(max)=169[Nm]

3 YAW CHUCK SUB SPINDLE 135[mm]5"

SUB SPINDLE: 6.000[min-1] P=5.5/5.5/3.7[kW]<S3 25% / S3 60% / S1/cont>M(max)=47[Nm]

TURRET - 12 PO/24 INDEX BMT45

Automatic tool measuring hand RENISHAW

High pressure pump #1 5.0[bar]- 50[Hz]/1.8[kW]

Panel filtering system, filtration 20[μm], flow rate: 30[l/min]

Normal pressure pump #2 2.0 Bar

High pressure pump #3 12.0 bar with special valving system for continous operation between toolchange.

Parts ejection system through subspindle

Water through subspindle

Oil skimmer

Parts catcher with drawer

Parts catcher with conveyor system

Bar-feeder interface

Doosan system of axis overload (measuring system)

Signal tower light

Robot inerface

Chip conveyor system

LOSMA air filtration unit wiht separation efecet

Water spray gun, with electronic control actuation.

Tooling avaliable BMT45:

4x TOOLS STANDARD ID

6X TOOLS STANDARD OD

2X DOUBLE STANDARD ID

2X DOUBLE STANDARD OD

3X STRAIGHT DRIVEN TOOL

2X ANGLE DRIVEN TOOL

Option:
Barfeeder Breuning Irco 1200mm, 2011

Dead length collet Chuck

Collets
